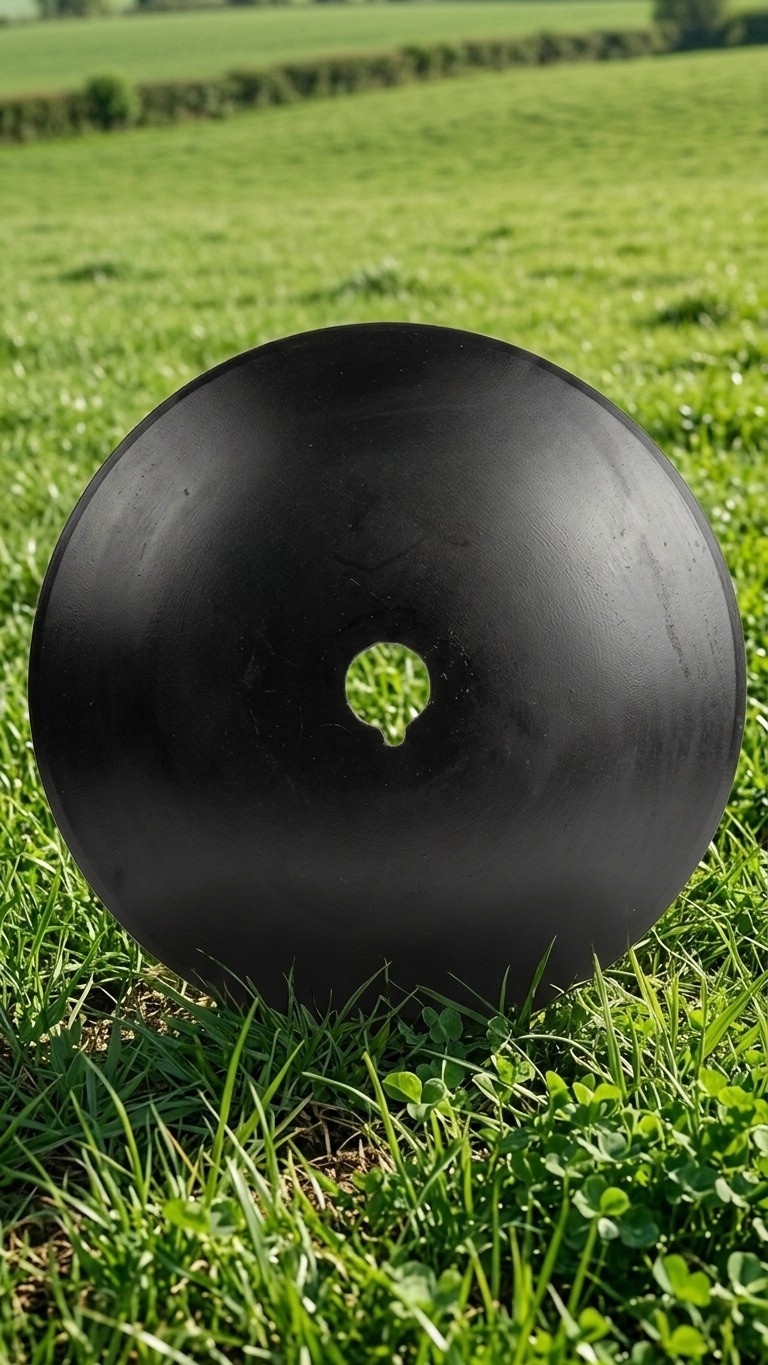

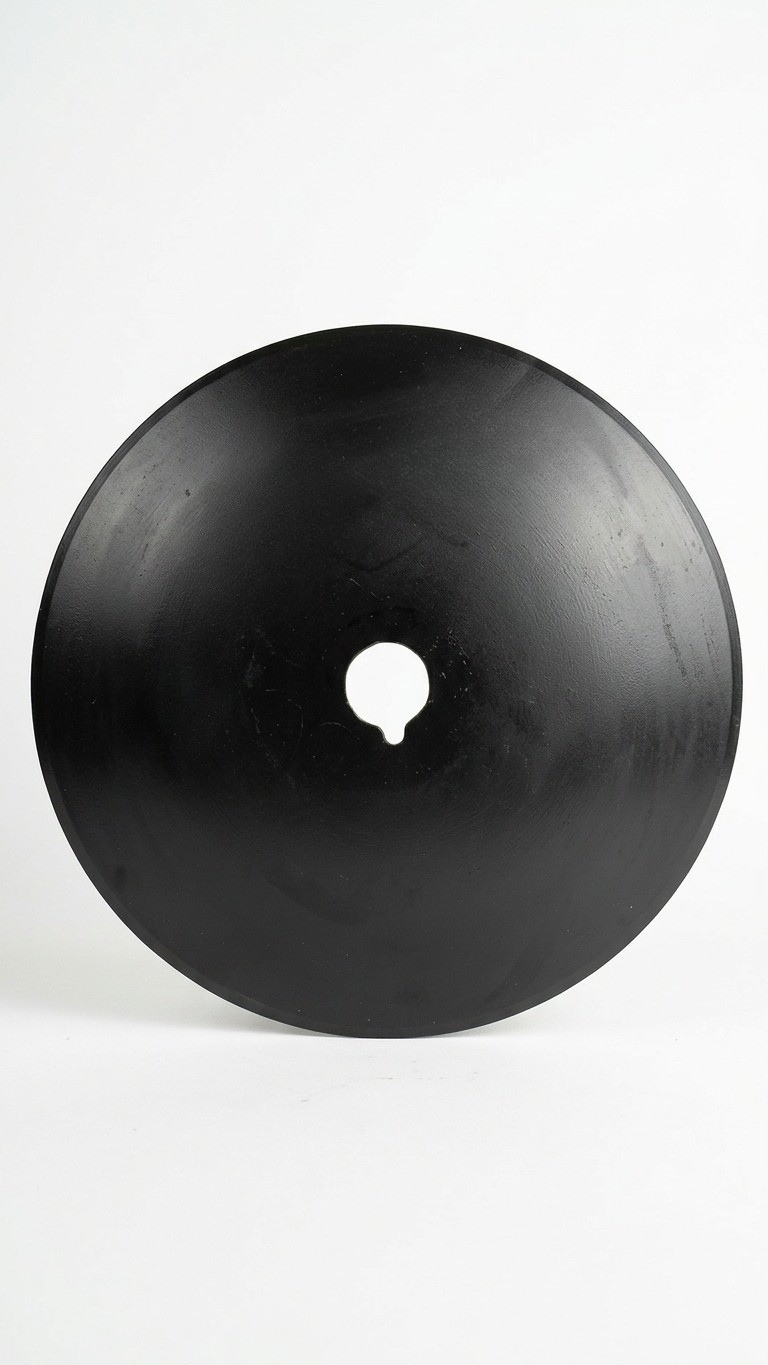

Harrow Discs are precision-engineered agricultural components designed for use in disc harrows for primary and secondary tillage operations. Manufactured from high-quality boron or high carbon steel, these discs ensure superior soil penetration, effective clod breaking, and long-lasting durability under demanding field conditions.
Harrow Discs deliver strength, reliability, and high field efficiency, making them an essential component for achieving superior soil preparation and improved agricultural productivity.
( Plain , Notched , conical , Flat center)
|
Diameter (inches) |
Diameter (mm) |
Thickness (mm) |
Center Hole(mm) |
Concavity (mm) |
Weight (KG) |
Material |
|
18 |
460 |
3.0-4.0 |
25-65 |
45 |
4.0-5.0 |
High Carbon/Boron |
|
20 |
510 |
3.5-5.0 |
25-65 |
56 |
5.0-8.0 |
High Carbon/Boron |
|
22 |
560 |
3.5-5.0 |
25-65 |
68 |
7.0-1-10.0 |
High Carbon/Boron |
|
24 |
610 |
4.0-6.0 |
25-65 |
81 |
9.5-14.5 |
High Carbon/Boron |
|
26 |
660 |
4.0-8.0 |
40-90 |
98 |
12.0-24.0 |
High Carbon/Boron |
|
28 |
710 |
4.5-8.0 |
40-100 |
102 |
14.0- 28.0 |
High Carbon/Boron |
